Sunlit Pro Series LED Rental Display

Sunlit Pro Series
LED Rental Panel

Smart lock design

The smart locks are designed to make the splicing between the cabinets more stable and robust.

Large magnetic suction design

The top and bottom of the cabinet are equipped with large magnetic pieces, which allow for automatic suction and fast positioning during assembly.

Front and rear maintenance

Support for front and rear maintenance, different maintenance methods can be selected according to different application scenarios.

90° right angle splicing

Support 90°right-angle splicing of cabinets and easily create various column screens and right-angle screens.

Internal and external arc splicing

Customized arc lock can be selected to achieve -10° ~ +10°internal and external arc splicing.

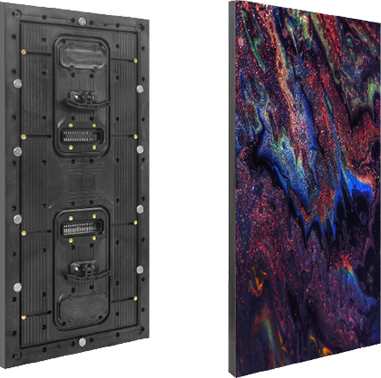

Two cabinets, any splicing

The Sunlit Pro series is available in both long and short cabinet sizes. The two cabinets can not only be used individually but can also be combined, providing the flexibility to choose different cabinets for fitting according to the needs of the scenario.

Large module design

The module size is 250*500mm, a larger size that greatly reduces screen installation and dismantling time to improve overall efficiency.

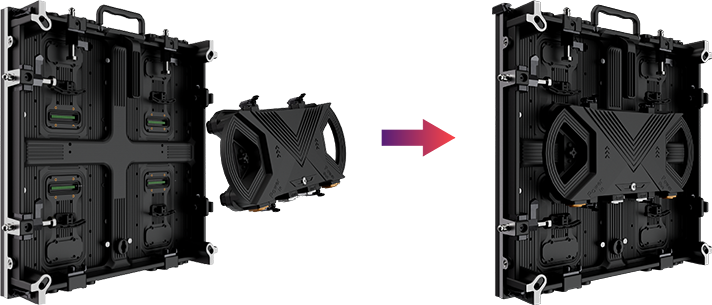

Power hox hard-connect plug-in design

Featuring a wireless hard-connect power box for a cleaner overall appearance and more efficient on-site dismantling and installation.

Corner protection design

The cabinet is protected from bumps by foldable corner protectors around the corners of the screen.

Full flip-chip COB packaging technology, high protection

The full flip-chip COB packaging technology has robust stability and reliability while protecting against dust, static electricity, and impacts. Optional common cathode design, low heat generation, low-temperature rise, low power consumption, extended lifespan.

Multiple applications

Film and TV shooting & XR virtual shooting

Music Hall

Concert

Outdoor Events

Specifications

Sunlit PRO Series

RU55-1P9VB

RU55-2P6VB

RU55-3P9VB

RO55-2P6VB

RO55-3P9VB

RO55-4P8VB

RO55-1P5VC

RO55-1P9VC

RO55-1P9VCA

Model
Pixel Pitch(mm)
Panel Technology
Resolution
Unit Size(W x H x Dmm)
Module Size(W × Hmm)
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Colour Temperature
Viewing Angle(H./V.)
Refresh Rate(Hz)
Lifetime(Hours)
Working Voltage
Power ConsumptionMax(W/m²)
Operating Temp(°C)
Humidity Range
Weight(kg)

RU55-1P9VB
P1.953(indoor)
SMD
256 x 256
500*500*88
250 x 250
500 ~ 600
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
8.5

RU55-2P6VB
P2.604(indoor)
SMD
192 x 192/384 x 384
500*500*88/500*1000*88
250 x 250
500 ~ 600
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
8.5/14

RU55-3P9VB
P3.91(indoor)
SMD
128 x 128/128 x 256
500*500*88/500*1000*88
250 x 250
800
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
8.5/14

RO55-2P6VB
P2.604(outdoor)
SMD
192 x 192
500*500*88
250 x 250
4000
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
8.5

RO55-3P9VB
P3.91(outdoor)
SMD
128 x 128/128 x 256
500*500*88/500*1000*88
250 x 250
5000
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
8.5/14

RO55-4P8VB
P4.81(outdoor)
SMD
104 x 104/104 x 208
500*500*88/500*1000*88
250 x 250
4700
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
8.5/14

RO55-1P5VC
P1.5625(outdoor)
COB
320*320
500*500*88
250 x 250
3000
14
5000:1
3200K~12000K(adjustable)
170°/170°
3480
≥100000
AC:100V~220V,50/60Hz
≤630
-20~+50
10%~90%RH
9.5

RO55-1P9VC
P1.984(outdoor)
COB
252*252
500*500*88
250 x 250
2600
14
5000:1
3200K~12000K(adjustable)
170°/170°
3480
≥100000
AC:100V~220V,50/60Hz
≤550
-20~+50
10%~90%RH
9.5

RO55-1P9VCA
P1.984(outdoor)
COB
252*252
500*500*88
250 x 250
2600
14
5000:1
3200K~12000K(adjustable)
170°/170°
3480
≥100000
AC:100V~220V,50/60Hz
≤720
-20~+50
10%~90%RH
9.5
