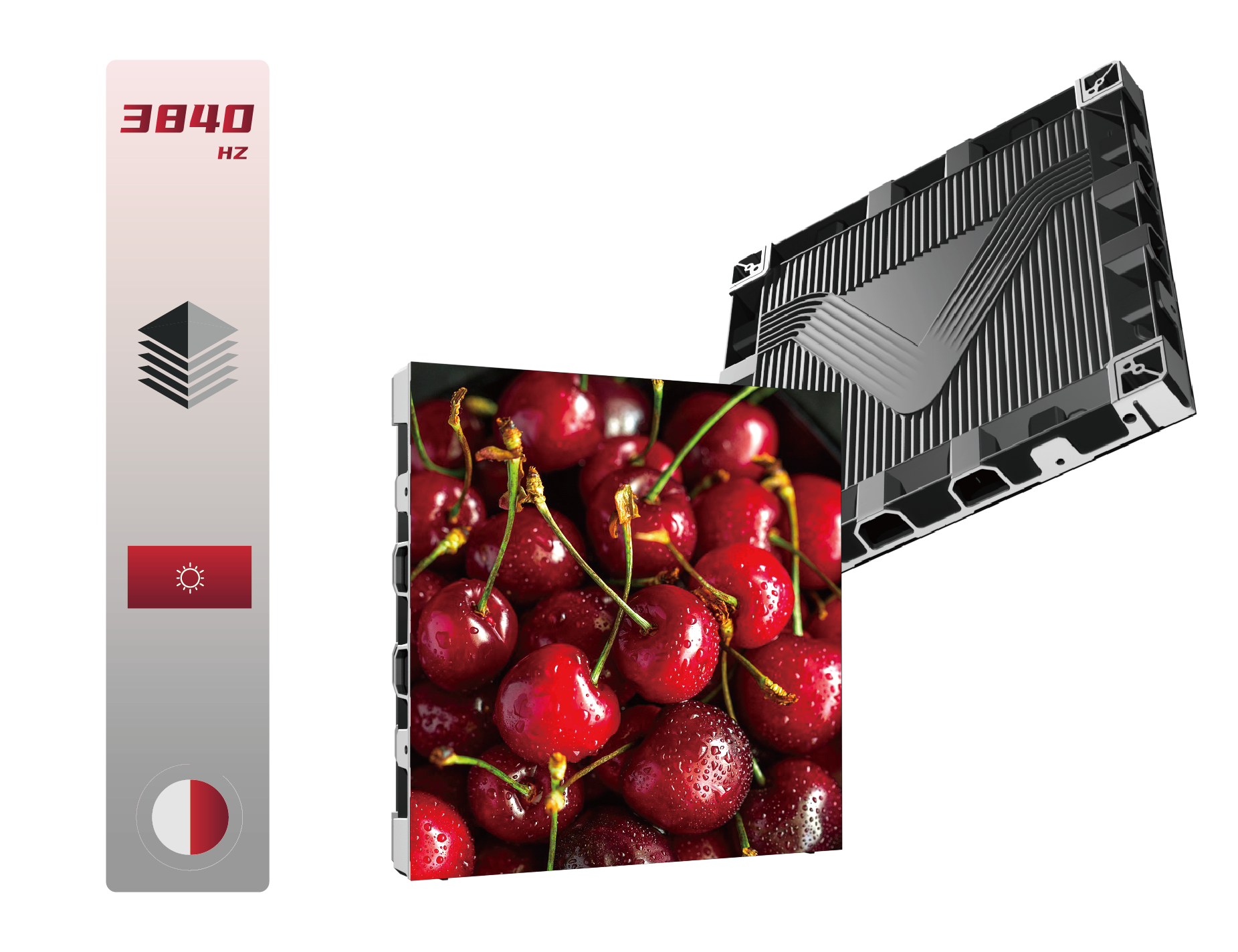

Cube pro LED Standard Panel

Fully Compatible Design for Diverse Applications

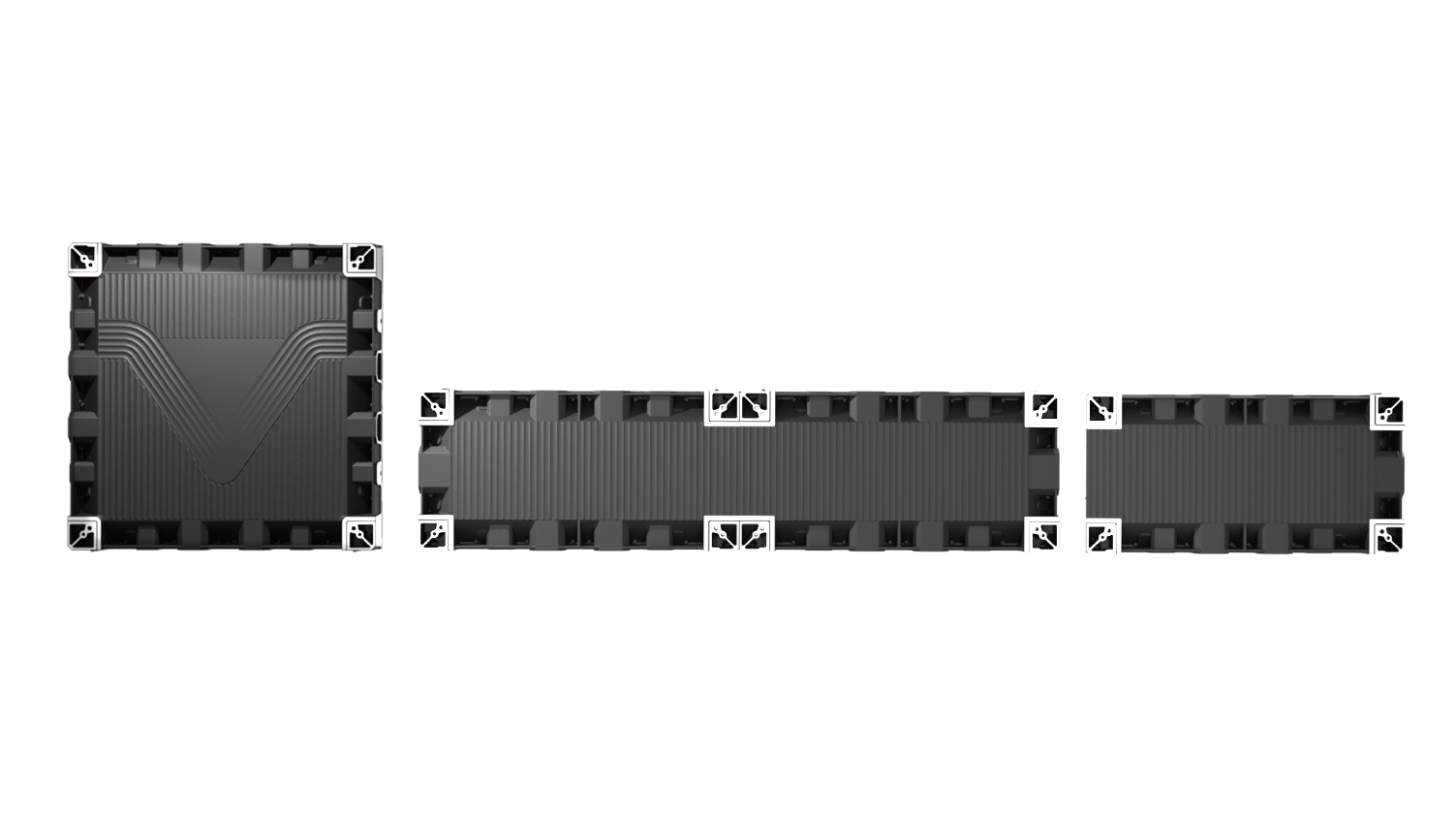

The cabinet supports both SMD and COB panels, with pixel pitch options ranging from P1.2 to P2.9, ensuring adaptability for various applications.

Ideal for various indoor small-pitch LED display solutions.

Multiple Options, Dual Protection

Supports LED board Flash with automatic parameter storage. After replacing the LED board, parameters are automatically retrieved.

Compatible with both common cathode and common anode circuit designs, providing project-specific options.

Features dual backup for receiving card and power supply, ensuring continuous operation.

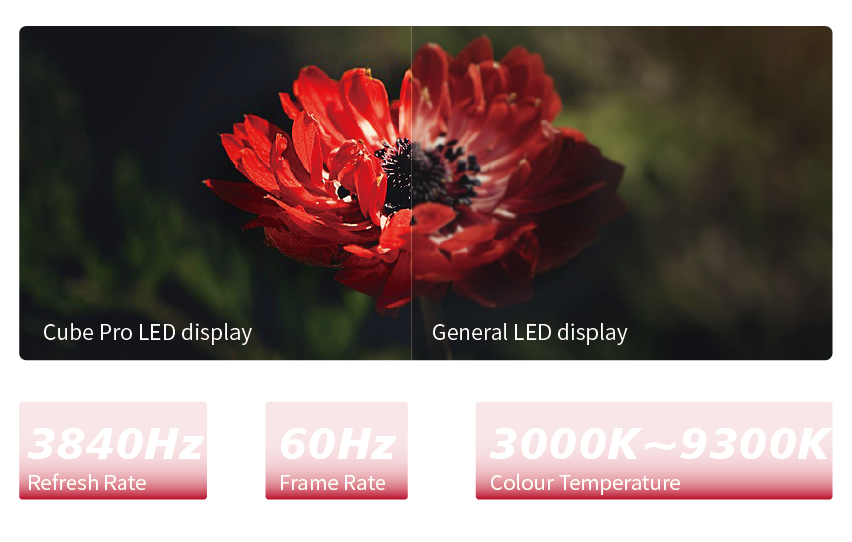

High refresh rate, Low brightness & high grayscale, Superior image quality, Wide color gamut

Stunning Visuals, Premium Display

Reliable Design for Peace of Mind

Full front maintenance design makes installation and servicing faster and easier.

Supports hot-swapping with a fanless and silent design.

Diverse Installation, Flexible Application

The cabinet supports curved splicing and 90-degree corner splicing with high flatness.

Suitable for fixed installations and wall mounting.

Specifications

Cube Pro LED Standard Panel

C55-12VBA

C55-15VBA

C55-19VBA

C55-19VBA（H）

U55-12VB

U55-15VB

U55-19VB

U55-26VB

U55-29VB

Model
Pixel Pitch(mm)
Resolution
Panel Technology
Unit Size (W × H × Dmm)
Brightness(nits)
Contrast Ratio
Colour Temperature
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W/m²)
Power Consumption AVG (W/m²)
Viewing Angle(H./V.)
Lifetime(Hours)
Operating Temp(℃)
Humidity Range(%RH)
Unit Weight(kg)

C55-12VBA
P 1.25
400*400
COB

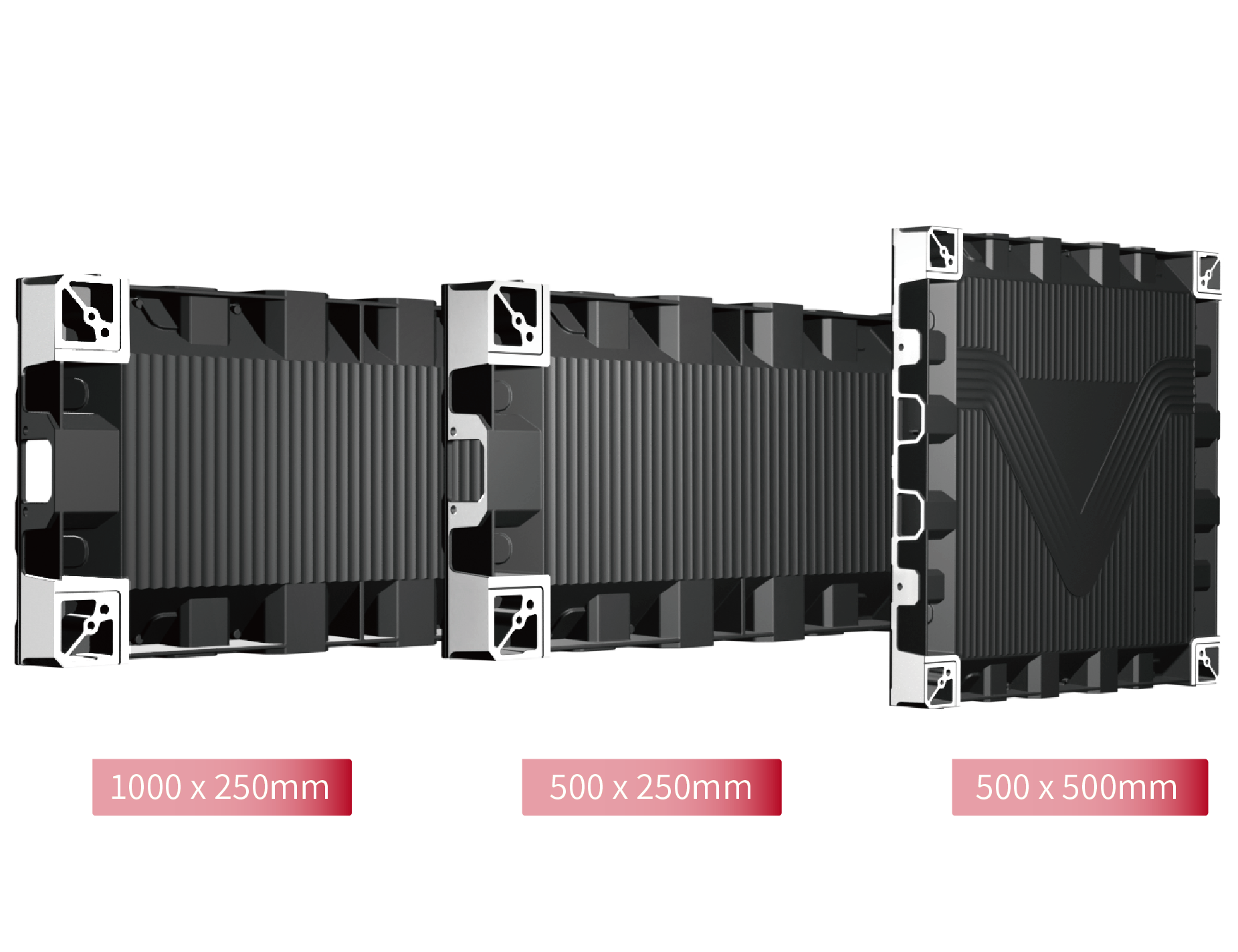

500*500*50/ 500*250*50/ 1000*250*50
600
20000:1
3000~9300
60
3840
AC：100~240V，50/60Hz
460
160
170°/170°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

C55-12VBA
P 1.5625
320*320
COB
500*500*50/ 500*250*50/ 1000*250*50
600
20000:1
3000~9300
60
3840
AC：100~240V，50/60Hz
460
160
170°/170°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

C55-19VBA
P 1.953
256*256
COB
500*500*50/ 500*250*50/ 1000*250*50
600
20000:1
3000~9300
60
3840
AC：100~240V，50/60Hz
460
160
170°/170°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

C55-19VBA（H）
P 1.953
256*256
COB
500*500*50/ 500*250*50/ 1000*250*50
2000
20000:1
3000~9300
60
3840
AC：100~240V，50/60Hz
460
160
170°/170°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

U55-12VB
P 1.25
400*400
SMD
500*500*50/ 500*250*50/ 1000*250*50
600
4000：1
3000~9300
60
3840
AC：100~240V，50/60Hz
560
190
140°/140°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

U55-12VB
P 1.5625
320*320
SMD
500*500*50/ 500*250*50/ 1000*250*50
600
4000：1
3000~9300
60
3840
AC：100~240V，50/60Hz
560
190
140°/140°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

U55-19VB
P 1.953
256*256
SMD
500*500*50/ 500*250*50/ 1000*250*50
600
4000：1
3000~9300
60
3840
AC：100~240V，50/60Hz
560
190
140°/140°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

U55-26VB
P 2.604
192*192
SMD
500*500*50/ 500*250*50/ 1000*250*50
600
4000：1
3000~9300
60
3840
AC：100~240V，50/60Hz
560
190
140°/140°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

U55-29VB
P 2.97
168*168
SMD
500*500*50/ 500*250*50/ 1000*250*50
600
4000：1
3000~9300
60
3840
AC：100~240V，50/60Hz
560
190
140°/140°
100000
-10~50
10~80
500×500mm: 6.5, 500×250: 3.5, 1000×250: 6.5

Related Downloads

Cube Pro LED Standard Panel

2.9MB

2023-04-17
