Starry Series LED Standard Panel

LED Panel with Cable Free Design

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

Multiple pixel pitch options to meet different viewing distances

The cabinet is compatible with pixel pitches ranging from P1.2 to P4.0, making it suitable for various indoor applications.

Rich colour expression, excellent display performance, and brightness up to 800 nits.

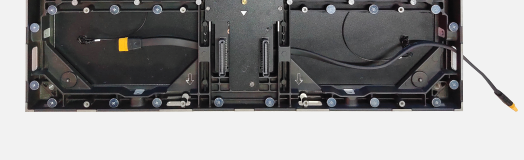

LED Panel with cable free design

Cable-free connection between the module and panel for easy maintenance and installation.

Simple and orderly appearance

Built-in cabinet cascading cables eliminate the need for complicated external wiring, resulting in a simple and orderly appearance.

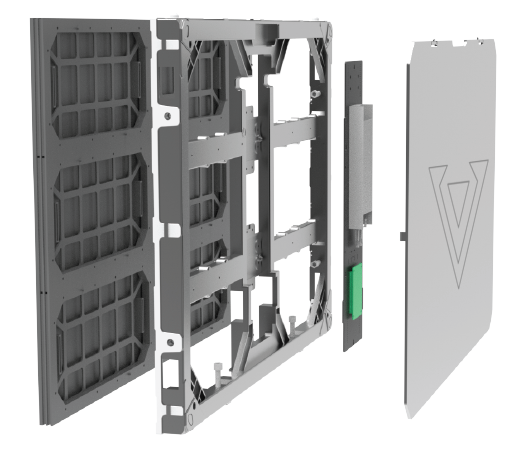

Robust material, die-casting aluminum cabinet

The cabinet is made of die-cast aluminum, providing high hardness, lightweight, excellent heat dissipation, and effective moisture and dust resistance.

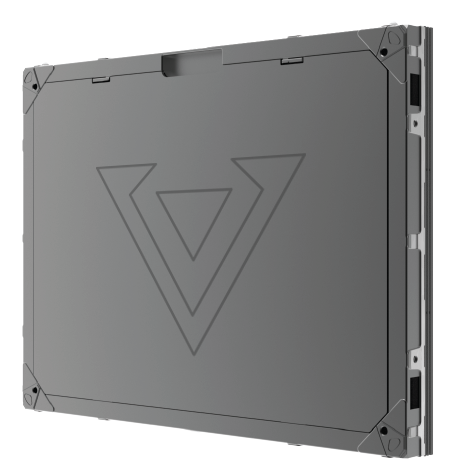

Magnetic back cover design for convenient operation and maintenance.

Flexible installation for versatile scenarios

Support fixed-mounting and wall-mounting.

Specifications

Starry Series

U64-12VA

U64-15VA

U64-18VA

U64-20VA

U64-25VA

U64-30VA

U64-40VA

Model
Pixel Pitch(mm)
Unit Size(W × H × D) (mm)
Resolution
Module Size (W x H x D)(mm)
Panel Technology
Brightness(nits)
Contrast Ratio
Colour Temperature
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W/m²)
Power Consumption Typical (W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight(kg)

U64-12VA
P1.2
640 x 480 x 54mm
512*384
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-15VA
P1.5
640 x 480 x 54mm
416*312
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-18VA
P1.8
640 x 480 x 54mm
344*258
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-20VA
P2.0
640 x 480 x 54mm
320*240
320 x 160 x 17mm
SMD
800nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-25VA
P2.5
640 x 480 x 54mm
256*192
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-30VA
P3.0
640 x 480 x 54mm
208*156
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5

U64-40VA
P4.0
640 x 480 x 54mm
160*120
320 x 160 x 17mm
SMD
600nits
4000:1
3000K~9300K(adjustable)
60Hz
3840Hz
AC:100~240V, 50/60Hz
650W/m²
220W/m²
100000
-10°C~50°C
10% ~ 80%RH
6.5
