Flow Series LED Indoor Flexible Module

Low Current

Low Heat

High Contrast

High Refresh Rate

Thin to the extreme, flexible beyond compare

Featuring an 8.6mm ultra-thin module with a flexible internal PCB board and a silicone back casing, the Flow Series is highly flexible and can be combined with various curved screens at will.

Three sizes, fully covered

The Flow Series indoor LED flexible module is available in 320x160mm, 256x128mm, and 240x120mm sizes, covering a wide range of pixel pitches from P0.9375 to P4 to meet the needs of different project scenarios.

Strong adsorption, smooth as a mirror

The single magnet in the bottom enclosure can contain up to 2500GS, which solves the problem of debonding and warping in regular flexible modules, effectively improving the flatness of the screen surface and ensuring the display effect.

Flexible and versatile, unlimited creativity

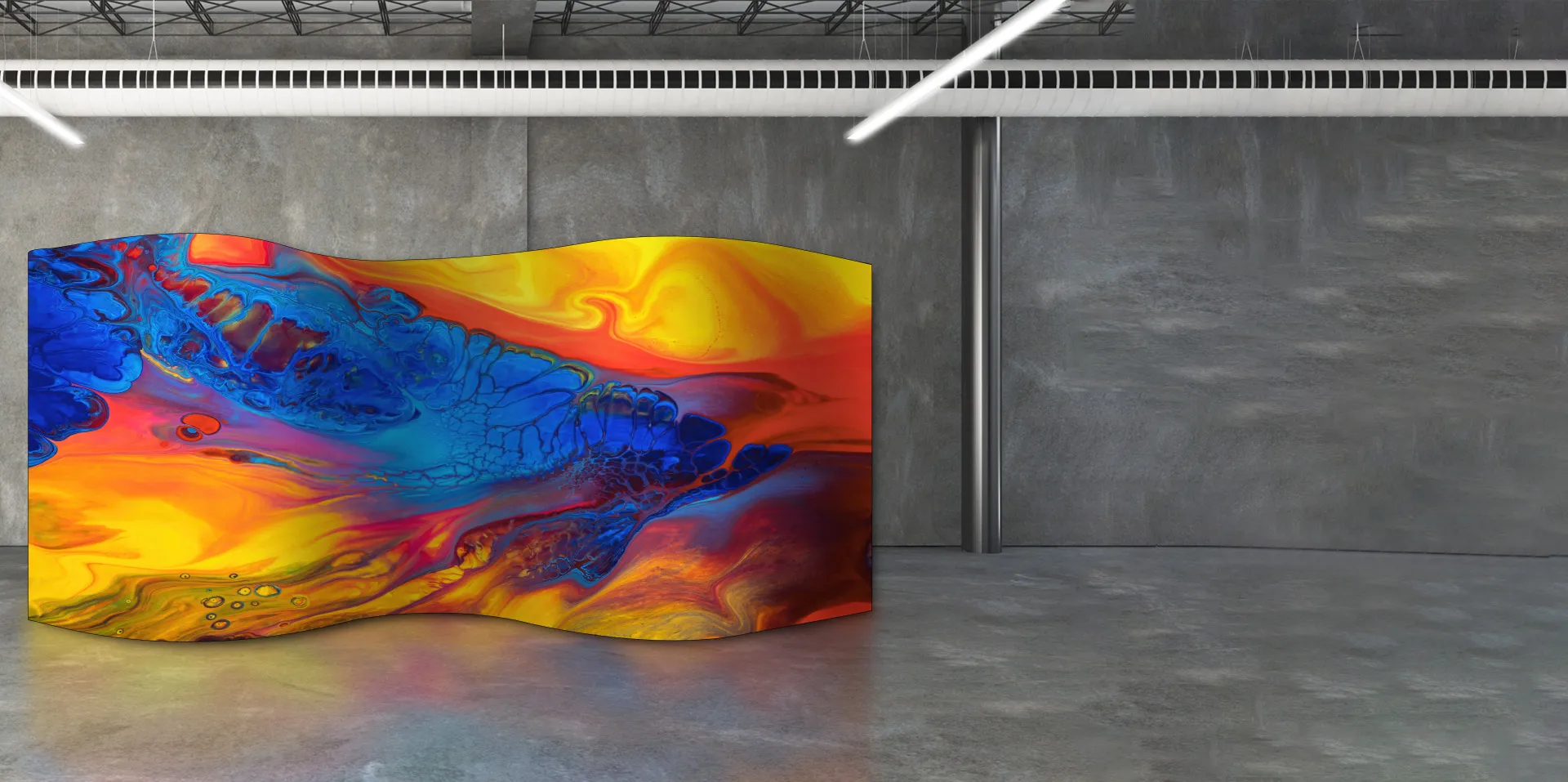

With its high flexibility and large angle, the Flow Series indoor LED flexible module can realise cylindrical, spiral, wave, ribbon, and other fantastic artistic shapes, bringing a marvellous visual experience.

Specifications

Flow Series

UMS3216-1.25A

UMS3216-1.29A

UMS3216-1.56A

UMS3216-1.86A

UMS3216-2A

UMS3216-2.5A

UMS3216-3A

UMS3216-4A

UMS2512-2A

UMS2516-4A

UMS2412-0.93A

UMS2412-1.25A

UMS2412-1.57A

UMS2412-1.66A

UMS2412-1.87A

UMS2412-2A

UMS2412-2.5A

UMS2412-3A

UMS2412-4A

Model
Pixel Pitch (mm)
LED type
Module Resolution
Module Size(W×H×D)/(mm)
Module Weight(g)
Grey Scale (Bits)
Brightness(cd/m²)
Colour Temperature
Refresh Rate(Hz)
Power Consumption Max(W/m²)
Power Consumption Typical(W/m²)
Working Voltage
Lifetime (Hours)
Operating Temp (°C)
Operating Humidity (%RH)

UMS3216-1.25A
P1.25
SMD1010
256x128
320x160x8.6mm
330
13 ~ 14
600 ~ 650
2500K±~9000K(adjustable)
3840
600
200
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-1.29A
P1.2903
SMD1010
248x124
320x160x8.6mm
400
13 ~ 14
600 ~ 650
2500K±~9000K(adjustable)
3840
600
200
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-1.56A
P1.5686
SMD1212
204 x 102
320x160x8.6mm
340
13 ~ 14
600 ~ 650
2500K±~9000K(adjustable)
3840
440
150
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-1.86A
P1.8605
SMD1515
172 x 86
320x160x8.6mm
340
12 ~ 13
700 ~ 750
2500K±~9000K(adjustable)
3840
430
145
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-2A
P2
SMD1515
160 x 80
320x160x8.6mm
340
12 ~ 13
700 ~ 750
2500K±~9000K(adjustable)
3840
450
150
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-2.5A
P2.5
SMD1515
128 x 64
320x160x8.6mm
290
12
700 ~ 750
2500K±~9000K(adjustable)
1920 ~ 3840
410
140
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-3A
P3.0769
SMD1515
104 x 52
320x160x8.6mm
290
12
650 ~ 750
2500K±~9000K(adjustable)
1920
410
140
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS3216-4A
P4
SMD2020
80 x 40
320x160x8.6mm
280
12
700 ~ 750
2500K±~9000K(adjustable)
1920
360
120
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2512-2A
P2
SMD1515
128 x 64
256x128x8.6mm
225
12 ~ 13
750 ~ 800
2500K±~9000K(adjustable)
3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2516-4A
P4
SMD2020
64 x 32
256x128x8.6mm
195
12
800 ~ 850
2500K±~9000K(adjustable)
1920
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-0.93A
0.9375
IMD 4 in 1
256x128
240x120x8.6mm
220
13 ~ 14
500 ~ 550
2500K±~9000K(adjustable)
2880~3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-1.25A
P1.25
SMD1010
192 x 96
240x120x8.6mm
220
13 ~ 14
600 ~ 650
2500K±~9000K(adjustable)
3840
560
190
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-1.57A
P1.5789
SMD1212
152 x 76
240x120x8.6mm
210
13 ~ 14
700 ~ 750
2500K±~9000K(adjustable)
3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-1.66A
P1.6667
SMD1212
144 x 72
240x120x8.6mm
200
13 ~ 14
700 ~ 750
2500K±~9000K(adjustable)
3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-1.87A
P1.875
SMD1515
128 x 64
240x120x8.6mm
217
12~13
750 ~ 800
2500K±~9000K(adjustable)
3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-2A
P2
SMD1515
120 x 60
240x120x8.6mm
210
12~13
750 ~ 800
2500K±~9000K(adjustable)
3840
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-2.5A
P2.5
SMD1515
96 x 48
240x120x8.6mm
190
12
750 ~ 800
2500K±~9000K(adjustable)
1920~3840
460
155
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-3A
P3
SMD2020
80 x 40
240x120x8.6mm
200
12
850 ~ 900
2500K±~9000K(adjustable)
1920
490
165
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

UMS2412-4A
P4
SMD2020
60 x 30
240x120x8.6mm
175
12
800 ~ 850
2500K±~9000K(adjustable)
1920
460
155
AC：100V~240V，50/60Hz
100,000
-10 ~ +50
10 ~ 80

Related Downloads

Flow Series LED Indoor Flexible Module Solution

1MB

2023-04-17
