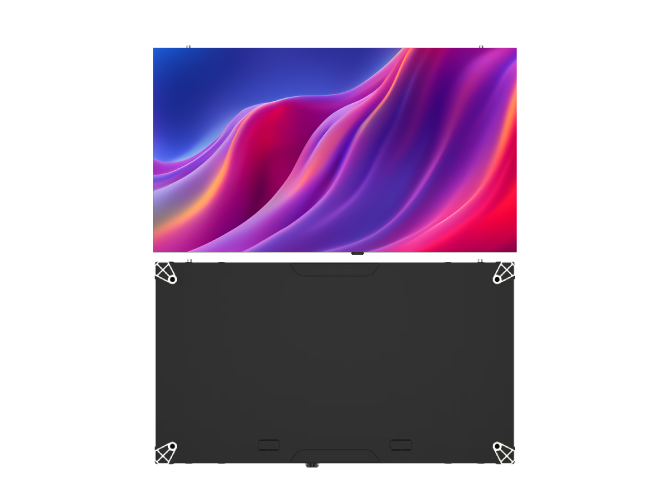

ECO Series Micro LED

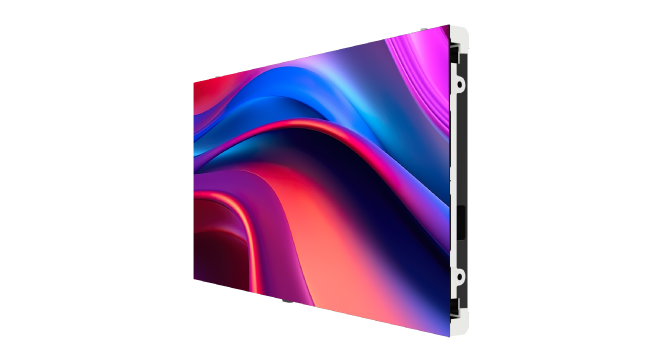

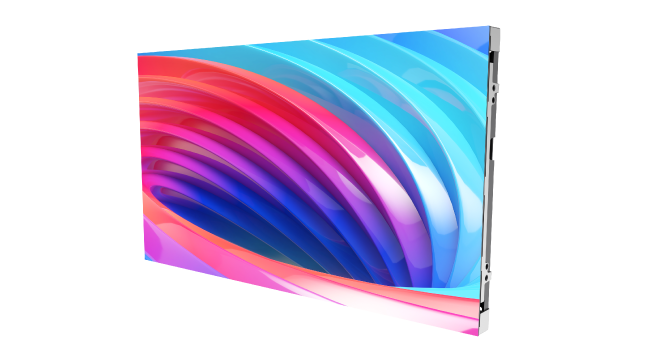

Minimalist Design

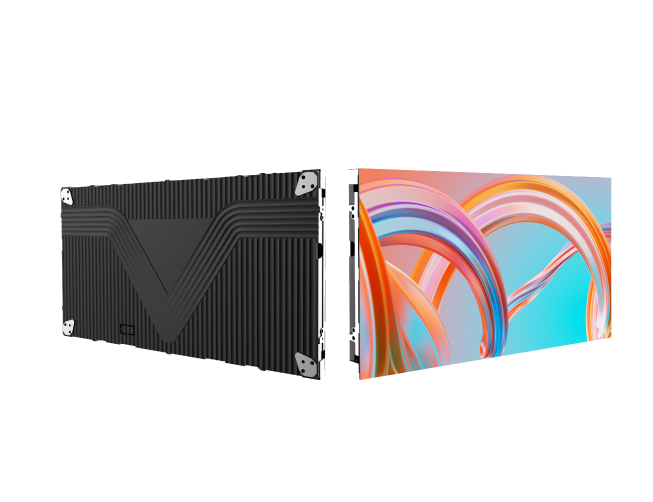

Ultra-thin 34.6mm, Ultra-light 3.9kg

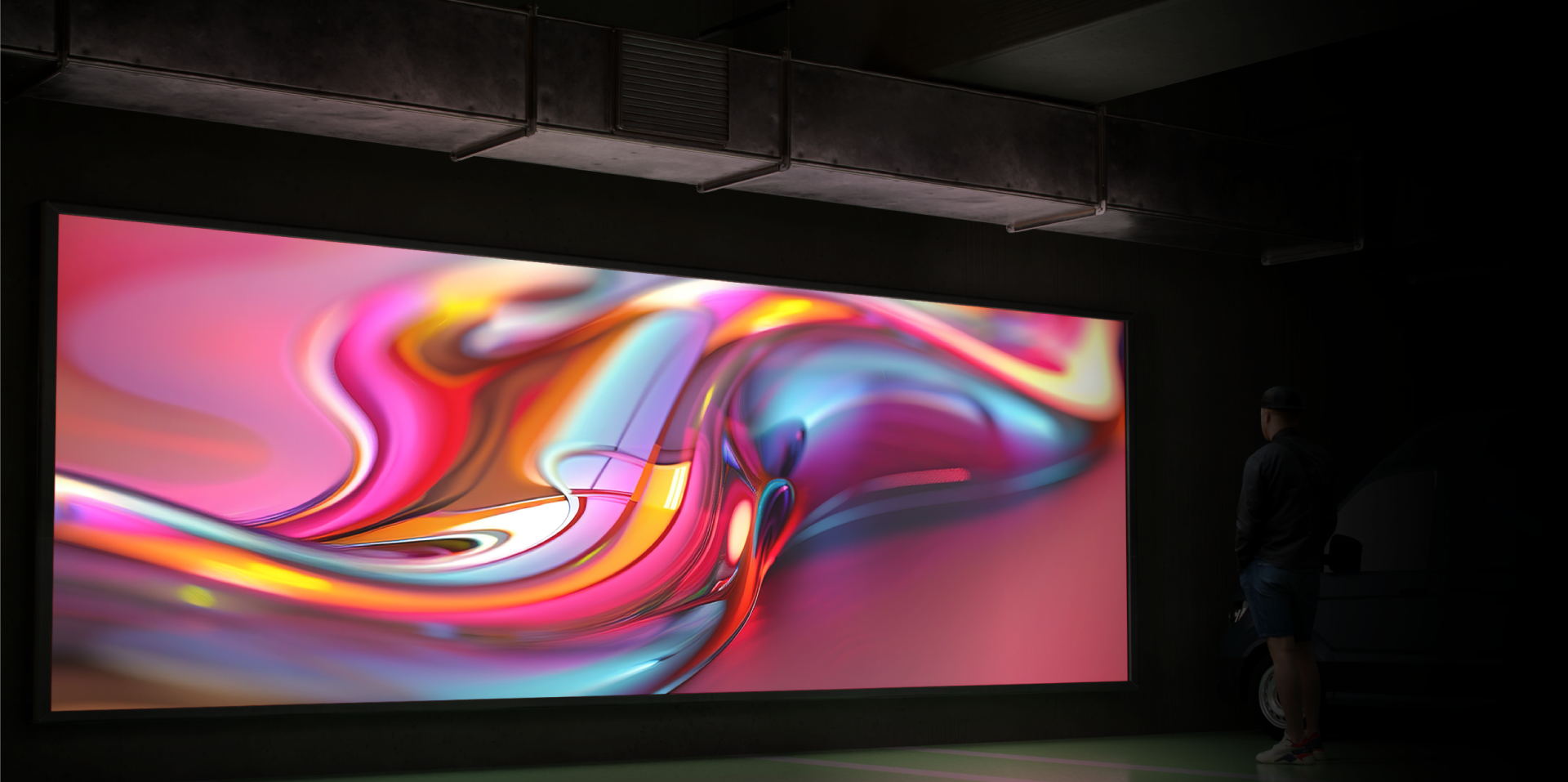

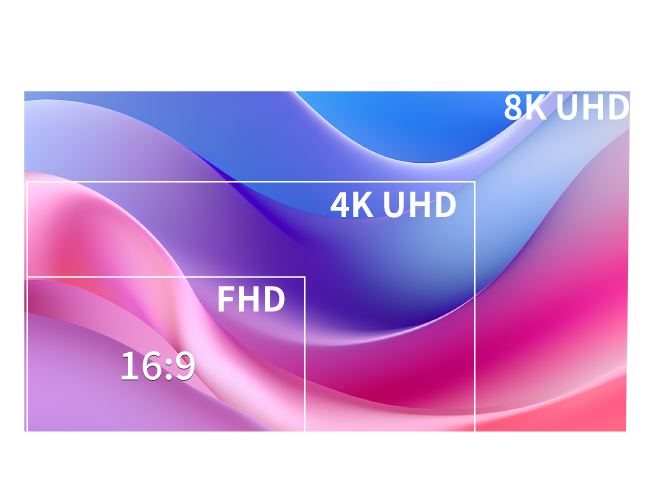

Standard 16:9 Aspect Ratio

The standard 16:9 aspect ratio enables stunning large-screen displays in FHD/4K/8K UHD resolution.

Full Flip-Chip COB Technology

Featuring full flip-chip COB technology, the panel presents uniform inky blacks.

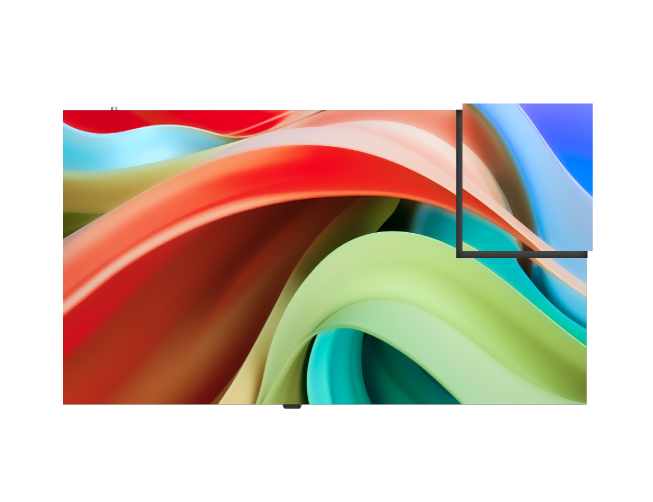

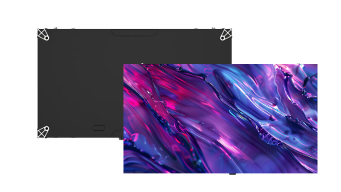

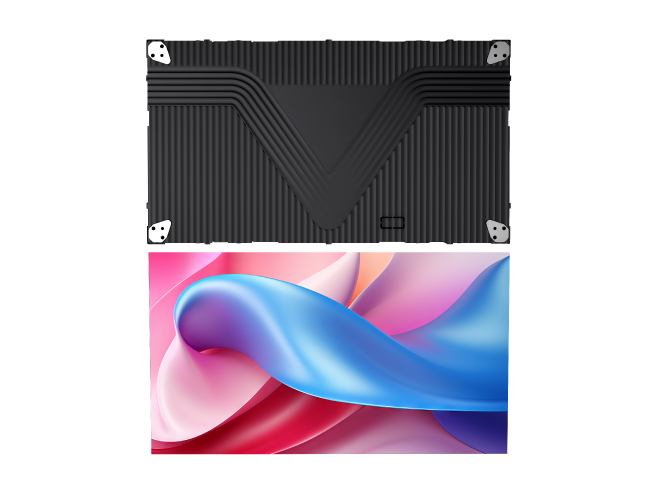

Full Front Maintenance & 3-in-1 Design

The modules support full front maintenance, ensuring more convenient installation and servicing.

The 3-in-1 design integrates the power supply, HUB, and receiver card.

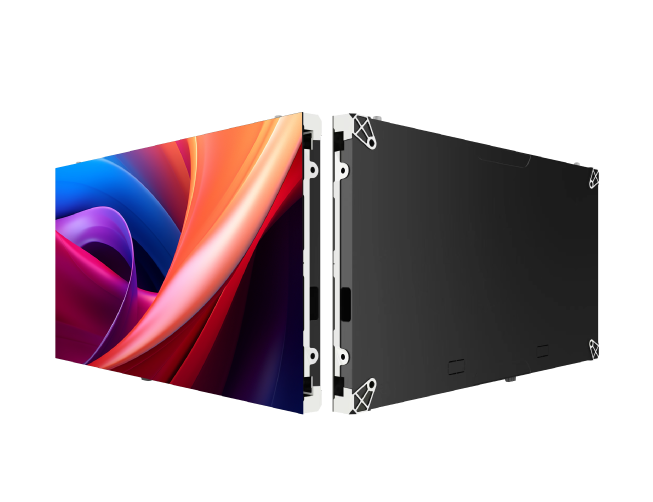

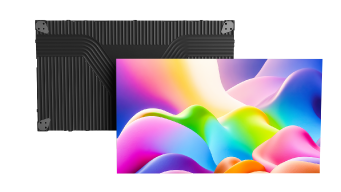

Hard Connection Design, Robust & Stable

The modules feature a hard connection to the cabinet for enhanced stability.

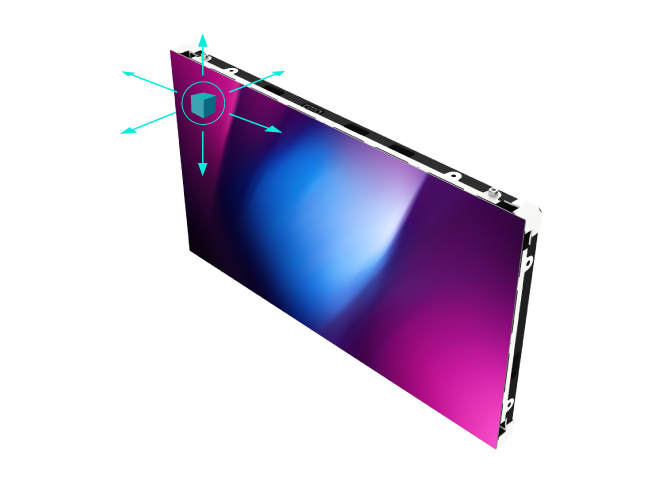

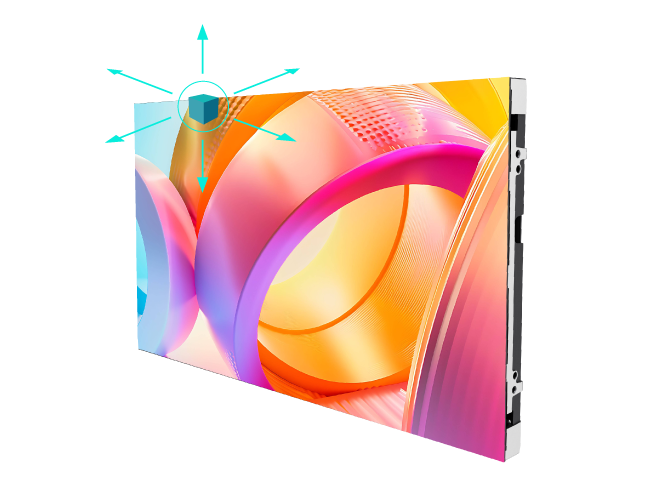

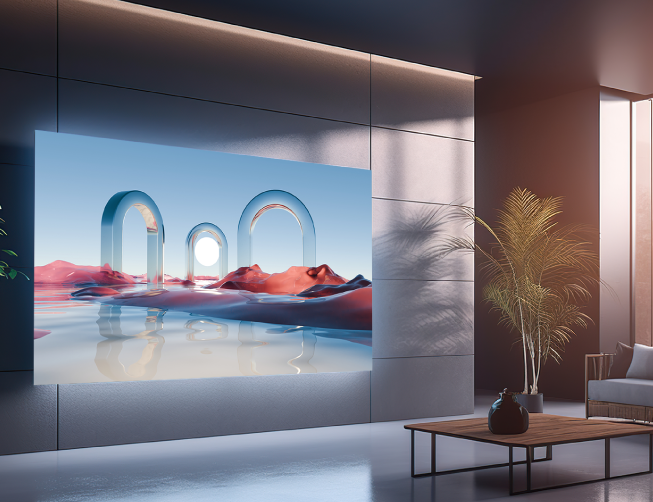

3-Axis, 6-Direction Adjustment for Exceptional Flatness

The modules support 3-axis, 6-direction adjustment, delivering superior flatness for smooth, seamless displays.

Specifications

ECO Series Micro LED

C63-09VB（N） C63-09VB（C）

C63-12VB（N） C63-12VB（C）

C63-12VBA（N） C63-12VBA（C）

C63-15VBA（N） C63-15VBA（C）

C63-18VBA（N） C63-18VBA（C）

Model
Pixel Pitch(mm)
Panel Dimensions(WxHxD)(mm)
Module Size(WxH)(mm)
Resolution
Panel Technology
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Viewing Angle(H./V.)
Frame Frequency(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight (kg)

C63-09VB（N）C63-09VB（C）
P0.9375
600 x 337.5 x 34.6
150 x 168.75
640*360
COB
600
1,000,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤300
≤100
100000
-10 ~ 40
10 ~ 80
3.9

C63-09VB（N）C63-09VB（C）
P1.25
600 x 337.5 x 34.6
150 x 168.75
480*270
COB
600
1,000,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤285
≤95
100000
-10 ~ 40
10 ~ 80
3.9

C63-12VBA（N）C63-12VBA（C）
P1.25
600 x 337.5 x 34.6
150 x 168.75
480*270
COB
600
1,000,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤300
≤100
100000
-10 ~ 40
10 ~ 80
3.9

C63-15VBA（N）C63-15VBA（C）
P1.5625
600 x 337.5 x 34.6
150 x 168.75
384*216
COB
600
1,000,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤310
≤105
100000
-10 ~ 40
10 ~ 80
3.9

C63-18VBA（N）C63-18VBA（C）
P1.875
600 x 337.5 x 34.6
150 x 168.75
320*180
COB
600
1,000,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤300
≤100
100000
-10 ~ 40
10 ~ 80
3.9
