H Series
LED STANDARD PANEL
Brightness up to 1000 nits.
The H Series dazzles with its 1000nits brightness, ensuring your content shines even in challenging lighting conditions.
LED Panel with cable-free design
Cable-free connection between the module and panel for easy maintenance and installation.

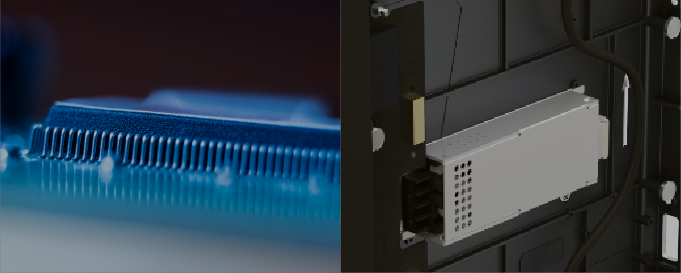

Dual backup design
The H Series supports dual backup for the power supply and receiver card, providing uninterrupted and reliable performance.
Slim and lightweight design
Ultra-thin 32mm cabinet, just 5.1kg in weight.
Smart modules
The light panel flash design can store parameters.The detection function can automatically check for damaged lamp beads and report back.
Full front service
Hot-swappable modules allow for easy installation or removal from the cabinet with the power on.
Flexible installation
Support fixed-mounting and wall-mounting.
Specifications
H Series
U63B-18VA
U63B-18VA(H)
  • Model
  • Pixel Pitch(mm)
  • Resolution
  • Unit Size(W x H x Dmm)
  • Brightness(nits)
  • Gray Scale(Bit)
  • Contrast Ratio
  • Colour Temperature
  • Viewing Angle(H./V.)
  • Refresh Rate(Hz)
  • Lifetime(Hours)
  • Working Voltage
  • Power ConsumptionMax(W/m²)
  • Operating Temp(°C)
  • Humidity Range(%RH)
  • Weight(kg)
  • U63B-18VA
  • X:1.86,Y:1.875
  • 344*192
  • 640*360*32mm
  • 600
  • 14
  • 4000:1
  • 3200K~12000K
  • 140°/140°
  • 3840Hz
  • ≥100000
  • AC:100V~220V,50/60Hz
  • ≤500
  • -10°C~+50°C
  • 10% ~ 85%RH
  • 5.1
  • U63B-18VA(H)
  • X:1.86,Y:1.875
  • 344*192
  • 640*360*32mm
  • 1000
  • 14
  • 4000:1
  • 3200K~12000K
  • 140°/140°
  • 3840Hz
  • ≥100000
  • AC:100V~220V,50/60Hz
  • ≤700
  • -10°C~+50°C
  • 10% ~ 85%RH
  • 5.1
