Targe Series Outdoor LED Advertising Kiosk

Android system

Android 9.0 OS

USB drive input

Play pictures, videos, etc.

Temperature control system

Intelligent adjustment

Eco-friendly modular design

Modules can be replaced individually.

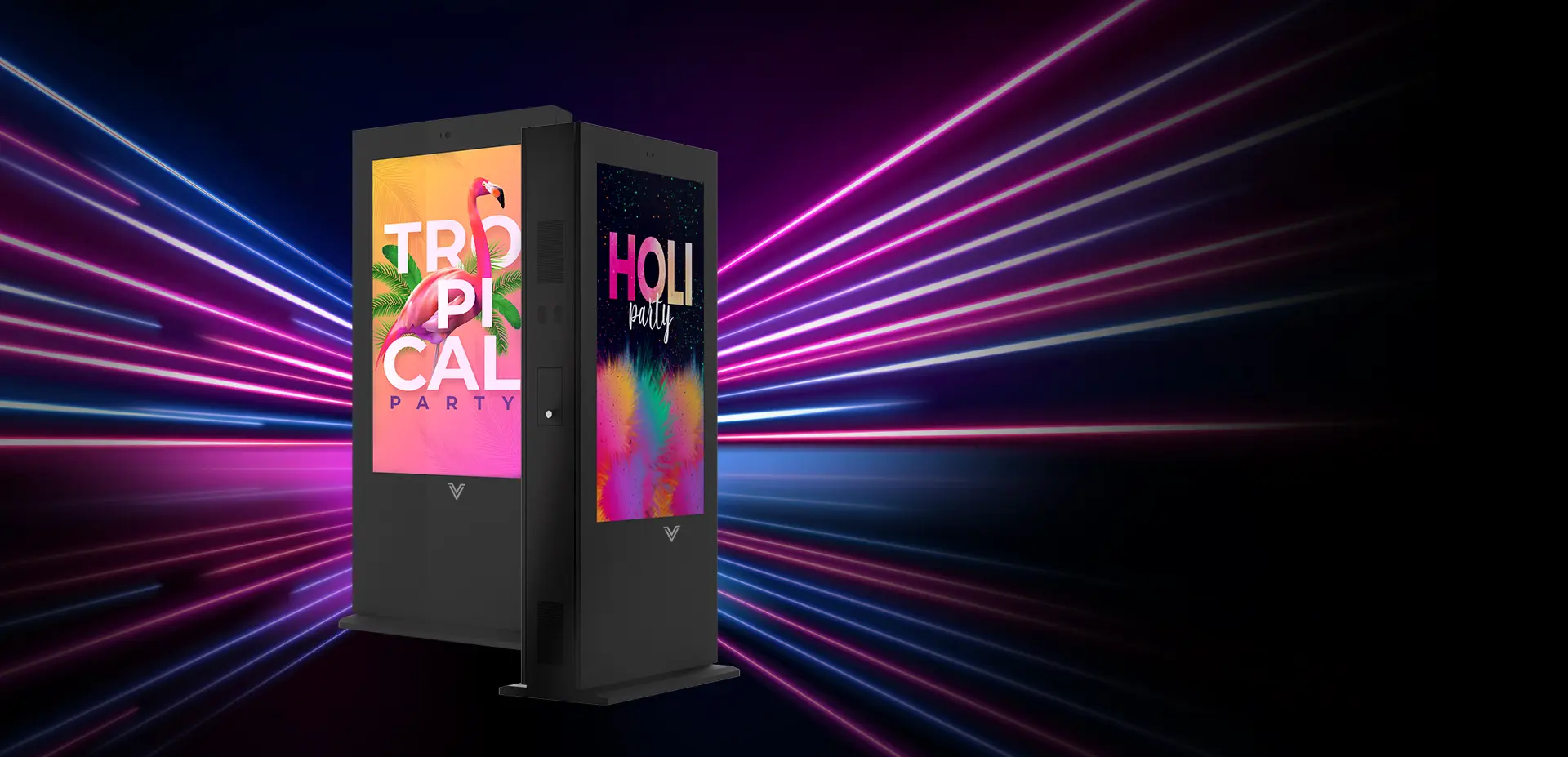

Engaging dual-sided display

Captivate attention with dual-sided screens, ensuring that your message reaches both directions of foot traffic. Unleash unexpected impact in commercial advertising displays.

Three sizes: 65", 74" and 86"

The TARGE series is available in three sizes: 65", 74" and 86".

Immerse your audience

Adopting high-brightness lamp beads and flip-chip common cathode design LED panels as the display screen, making it high contrast and wide colour gamut of the display screen, and the images are not affected by outdoor glare.

IP65 high protection rating

With unique housing protection to help the advertising kiosk withstand outdoor typhoons, rainstorms and other harsh weather conditions.

Double-layer laminated glass

Featuring robust double-layer laminated glass, the Targe Series provides effective protection.

Remote information publishing, cloud-based control management

Users can connect TARGE advertising kiosks to the network via WiFi, LAN, or 4G (optional) and perform cloud cluster management on a PC, mobile phone, PAD, or other terminal devices to achieve multi-functional cross-regional management of multiple screens.

Efficient Heat Dissipation

The unique cooling system ensures that the Targe series operates at an ideal temperature, preventing overheating of critical components and guaranteeing sustained, stable performance.

Eco-friendly modular design

The display is assembled with multiple modules, which can be replaced individually in the event of a failure, unlike the replacement of a whole LCD screen, making them far more eco-friendly and cost-effective.

Specifications

Targe Series

KO65LED VA-15SFP (Single-Sided)

KO65LED VA-18SFP (Single-Sided)

KO65LED VA-25SFP(Single-Sided)

KO74LED VA-15SFP (Single-Sided)

KO74LED VA-18SFP (Single-Sided)

KO74LED VA-25SFP (Single-Sided)

KO86LED VA-15SFP (Single-Sided)

KO86LED VA-18SFP (Single-Sided)

KO86LED VA-25SFP (Single-Sided)

KO65LED VA-15DFP (Double-Sided)

KO65LED VA-18DFP (Double-Sided)

KO65LED VA-25DFP (Double-Sided)

KO74LED VA-15DFP (Double-Sided)

KO74LED VA-18DFP (Double-Sided)

KO74LED VA-25DFP (Double-Sided)

KO86LED VA-15DFP (Double-Sided)

KO86LED VA-18DFP (Double-Sided)

KO86LED VA-25DFP (Double-Sided)

Model
Dimension(inch)
Actual Screen Dimensions(W x Hmm)
Brightness(nits)
Pixel Pitch(mm)
Resolution
Contrast Ratio
Refresh Rate(Hz)
System
Overal Dimensions(W x H x Dmm)
Ingress Protection
Working Voltage
Power Consumption Max(W)
Power Consumption Avg(W)
Weight(kg)
Operating Temp(℃)
Humidity Range

KO65LED
VA-15SFP
65”
810*1440
4000
P1.5
540 x 960
10000：1
1920~3840
Android 9.0
1040 x 2300 x 195(440)
IP65
AC：100V~240V，50/60Hz
1050
350
210
-20 ~ 50
10%~90%RH

KO65LED
VA-18SFP
65”
810*1440
4000
P1.8
432 x 768
10000：1
1920~3840
Android 9.0
1040 x 2300 x 195(440)
IP65
AC：100V~240V，50/60Hz
1050
350
210
-20 ~ 50
10%~90%RH

KO65LED
VA-25SFP
65”
810*1440
3500
P2.5
324 x 576
10000：1
1920~3840
Android 9.0
1040 x 2300 x 195(440)
IP65
AC：100V~240V，50/60Hz
1050
350
210
-20 ~ 50
10%~90%RH

KO74LED
VA-15SFP
74”
960*1620
4000
P1.5
640 x 1080
10000：1
1920~3840
Android 9.0
1190 x 2400 x 195(440)
IP65
AC：100V~240V，50/60Hz
1350
450
245
-20 ~ 50
10%~90%RH

KO74LED
VA-18SFP
74”
960*1620
4000
P1.8
512 x 864
10000：1
1920~3840
Android 9.0
1190 x 2400 x 195(440)
IP65
AC：100V~240V，50/60Hz
1350
450
245
-20 ~ 50
10%~90%RH

KO74LED
VA-25SFP
74”
960*1620
3500
P2.5
384 x 648
10000：1
1920~3840
Android 9.0
1190 x 2400 x 195(440)
IP65
AC：100V~240V，50/60Hz
1350
450
245
-20 ~ 50
10%~90%RH

KO86LED
VA-15SFP
86”
1080*1920
4000
P1.5
720 x 1280
10000：1
1920~3840
Android 9.0
1310 x 2520 x 195(440)
IP65
AC：100V~240V，50/60Hz
1800
600
310
-20 ~ 50
10%~90%RH

KO86LED
VA-18SFP
86”
1080*1920
4000
P1.8
576 x 1024
10000：1
1920~3840
Android 9.0
1310 x 2520 x 195(440)
IP65
AC：100V~240V，50/60Hz
1800
600
310
-20 ~ 50
10%~90%RH

KO86LED
VA-25SFP
86”
1080*1920
3500
P2.5
432 x 768
10000：1
1920~3840
Android 9.0
1310 x 2520 x 195(440)
IP65
AC：100V~240V，50/60Hz
1800
600
310
-20 ~ 50
10%~90%RH

KO65LED
VA-15DFP
65”
810*1440
4000
P1.5
540 x 960
10000：1
1920~3840
Android 9.0
1040 x 2300 x 295(540)
IP65
AC：100V~240V，50/60Hz
2100
700
380
-20 ~ 50
10%~90%RH

KO65LED
VA-18DFP
65”
810*1440
4000
P1.8
432 x 768
10000：1
1920~3840
Android 9.0
1040 x 2300 x 295(540)
IP65
AC：100V~240V，50/60Hz
2100
700
380
-20 ~ 50
10%~90%RH

KO65LED
VA-25DFP
65”
810*1440
3500
P2.5
324 x 576
10000：1
1920~3840
Android 9.0
1040 x 2300 x 295(540)
IP65
AC：100V~240V，50/60Hz
2100
700
380
-20 ~ 50
10%~90%RH

KO74LED
VA-15DFP
74”
960*1620
4000
P1.5
640 x 1080
10000：1
1920~3840
Android 9.0
1190 x 2400 x 295(540)
IP65
AC：100V~240V，50/60Hz
2700
900
450
-20 ~ 50
10%~90%RH

KO74LED
VA-18DFP
74”
960*1620
4000
P1.8
512 x 864
10000：1
1920~3840
Android 9.0
1190 x 2400 x 295(540)
IP65
AC：100V~240V，50/60Hz
2700
900
450
-20 ~ 50
10%~90%RH

KO74LED
VA-25DFP
74”
960*1620
3500
P2.5
384 x 648
10000：1
1920~3840
Android 9.0
1190 x 2400 x 295(540)
IP65
AC：100V~240V，50/60Hz
2700
900
450
-20 ~ 50
10%~90%RH

KO86LED
VA-15DFP
86”
1080*1920
4000
P1.5
720 x 1280
10000：1
1920~3840
Android 9.0
1310 x 2520 x 295(540)
IP65
AC：100V~240V，50/60Hz
3600
1200
550
-20 ~ 50
10%~90%RH

KO86LED
VA-18DFP
86”
1080*1920
4000
P1.8
576 x 1024
10000：1
1920~3840
Android 9.0
1310 x 2520 x 295(540)
IP65
AC：100V~240V，50/60Hz
3600
1200
550
-20 ~ 50
10%~90%RH

KO86LED
VA-25DFP
86”
1080*1920
3500
P2.5
432 x 768
10000：1
1920~3840
Android 9.0
1310 x 2520 x 295(540)
IP65
AC：100V~240V，50/60Hz
3600
1200
550
-20 ~ 50
10%~90%RH

Related Downloads

Targe Series Outdoor LED Advertising Kiosk

1.3MB

2023-04-17
