IRIS Mini Series Micro LED

Full Flip-Chip COB

±10° Curved Splicing

Modular Freedom

Custom Tri-Axis Connector for Precision Alignment

Enables six-directional adjustments to ensure flawless screen flatness.

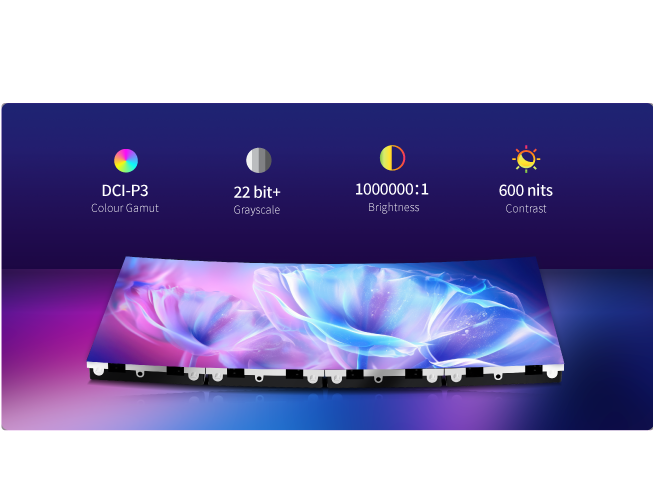

Superior COB Technology Energy-Efficient & Ultra-Durable

IRIS Mini delivers cinema-grade visual performance bringing every detail to life.

Full Front Maintenance, Effortless Installation

No Rear Access Required, saving installation space
Hot-swappable modules with fanless silent operation

Deep Matte Black, Ultimate Uniformity

Designed with a matte black anti-glare finish, achieving consistent and uniform color depth.

Versatile Mounting Options

Equipped with dual-directional front and rear mounting holes, supporting fixed installation, wall mounting, and more, adaptable to various scenarios.

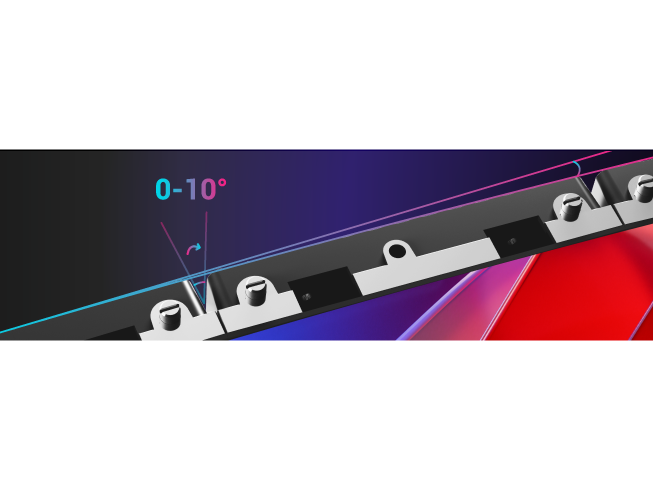

10° Smart Curvature , Boundless Creativity

Supports ±10° splicing, making it perfect for curved screen applications.

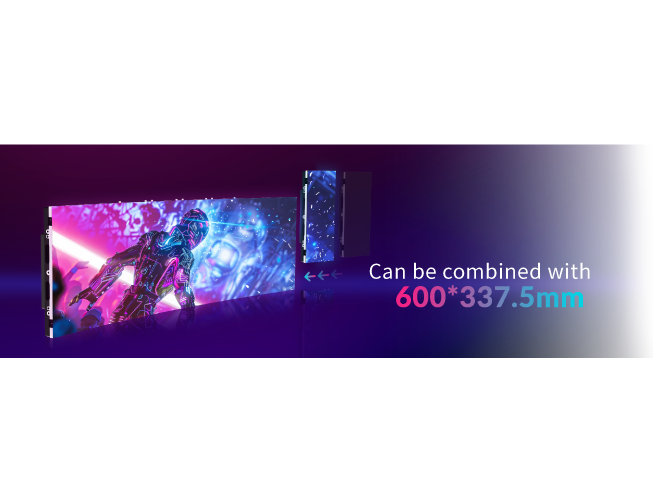

Seamless Expansion，Modular Freedom

IRIS Mini can be combined with standard 600 × 337.5mm panels (IRIS/IRIS-S Series) to extend large-scale displays effortlessly.

Specifications

IRIS Mini Series MicroLED

C13-09VT

C13-12VT

C13-12VTA

C13-15VTA

C13-18VTA

Model
Pixel Pitch(mm)
Resolution
Panel Technology
Brightness(nits)
Surface Treatment
Contrast Ratio
Viewing Angle(H./V.)
Colour Temperature(K)
Frame Rate(Hz)
Refresh Rate(Hz)
Unit Size (WxHx Dmm)
Working Voltage
Power Consumption Max(W/m2)
Power Consumption AVG (W/m2)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Unit Weight(kg)

C13-09VT
P0.9375
160*180
COB
600
Matte black finish
≤1000000:1
170°/170°
3000 ~ 9300
60
3840
150*337.5*31
AC：100~240V，50/60Hz
350
120
100000
-10 ~ +50
10 ~ 80
1.2

C13-12VT
P1.25
120*135
COB
600
Matte black finish
≤1000000:1
170°/170°
3000 ~ 9300
60
3840
150*337.5*31
AC：100~240V，50/60Hz
320
110
100000
-10 ~ +50
10 ~ 80
1.2

C13-12VTA
P1.25
120*135
COB
600
Matte black finish
≤1000000:1
170°/170°
3000 ~ 9300
60
3840
150*337.5*31
AC：100~240V，50/60Hz
350
120
100000
-10 ~ +50
10 ~ 80
1.2

C13-15VTA
P1.5625
96*108
COB
600
Matte black finish
≤1000000:1
170°/170°
3000 ~ 9300
60
3840
150*337.5*31
AC：100~240V，50/60Hz
350
120
100000
-10 ~ +50
10 ~ 80
1.2

C13-18VTA
P1.875
80*90
COB
550
Matte black finish
≤1000000:1
170°/170°
3000 ~ 9300
60
3840
150*337.5*31
AC：100~240V，50/60Hz
325
110
100000
-10 ~ +50
10 ~ 80
1.2

Related Downloads

IRIS Mini Series Micro LED

2.7MB

2025-03-18
