LCD Signage Monitor

All-metal unibody design

With the aluminium alloy face frame and sheet metal rear shell, the whole is robust and has better heat dissipation, greatly extending the service life.

Ultra-narrow four-sided design

Ultra-narrow bezels, four equal sides, minimalist design - creating a visually stunning and immersive display with high screen-to-body ratio.

Supports USB playback and quick upgrades

Built-in USB port allows pictures, videos and music to be played and system upgrades to be performed by inserting a USB drive.

24/7 continuous operation

Built with premium materials and components, this display guarantees superior performance and durability, making it perfect for nonstop 24/7 screen display.

178° wide viewing angle for an extraordinary visual experience.

Ultra high-definition display,enjoy exceptional visuals

With support for 3840x2160@60Hz resolution, colours are more vibrant and detailed, and images are clearer and more realistic, giving you an unparalleled viewing experience.

Multiple applications

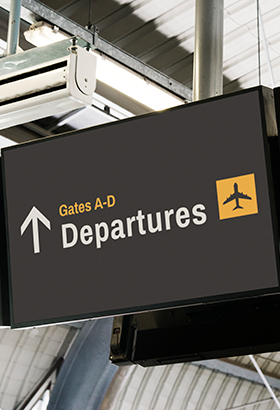

Public Service Information

Commercial Retail

Advertising & Promotion

Specifications

LCD Signage Monitor

M43LCDVA-F

M55LCDVA-U

M65LCDVA-U

M75LCDVA-U

M86LCDVA-U

M98LCDVA-U

M110LCDVA-U

Model
Panel Size
Backlight Category
Bare Dimension (W x H x Dmm)
Power Consumption(W)
Speakers Power
Stand-by Power Consumption(W)
Optimum Resolution
Viewing Angle
Brightness(cd/m²)
Contrast Ratio
Colour
Operating Voltage
Input
Output

M43LCDVA-F
43”
DLED
961*549.7*54
≤60
2 x 5W
≤0.5
1920 x 1080 @60Hz
178°
350
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M55LCDVA-U
55”
DLED
1233.4*704.7*60
≤80
2 x 15W
≤0.5
3840 x 2160@60Hz
178°
350
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M65LCDVA-U
65”
DLED
1483.2*859.12*78
≤180
2 x 15W
≤0.5
3840 x 2160@60Hz
178°
350
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M75LCDVA-U
75”
DLED
1705.36*984.38*78
≤280
2 x 15W
≤0.5
3840 x 2160@60Hz
178°
350
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M86LCDVA-U
86”
DLED
1951.56*1123.7*78
≤320
2 x 15W
≤0.5
3840 x 2160@60Hz
178°
350
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M98LCDVA-U
98”
DLED
2193.4*1255.3*90
≤450
2 x 10W
≤0.5
3840 x 2160@60Hz
178°
400
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

M110LCDVA-U
110”
DLED
2477.1*1411.4*90
≤550
2 x 10W
≤0.5
3840 x 2160@60Hz
178°
500
1200：1
1.07B
100V ~ 240V AC,50/60Hz
HDMI x 1 , AUDIO x 1 , VGA x 1 , DVI x 1 , USB 2.0 x 1 , 80PIN OPS JAE x 1 , CVBS x 1 , RS232 x 1
EARPHONE x 1 , RS232 x 1

Related Downloads

LCD Signage Monitor

1.3MB

2023-04-17
