Sunlit Max Series

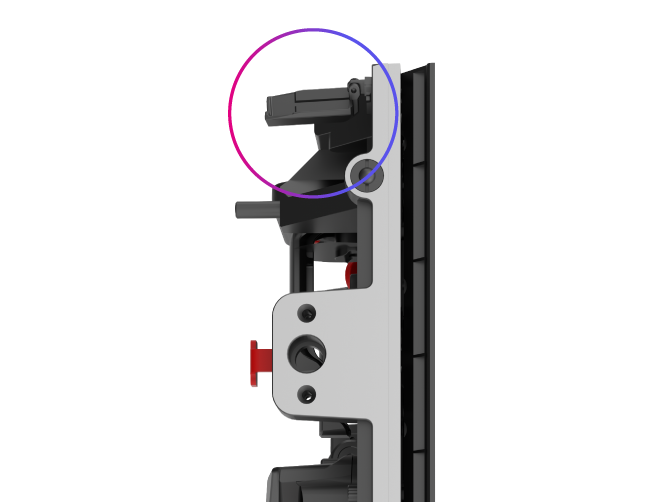

Quick-Lock Design

The quick-lock design between cabinets

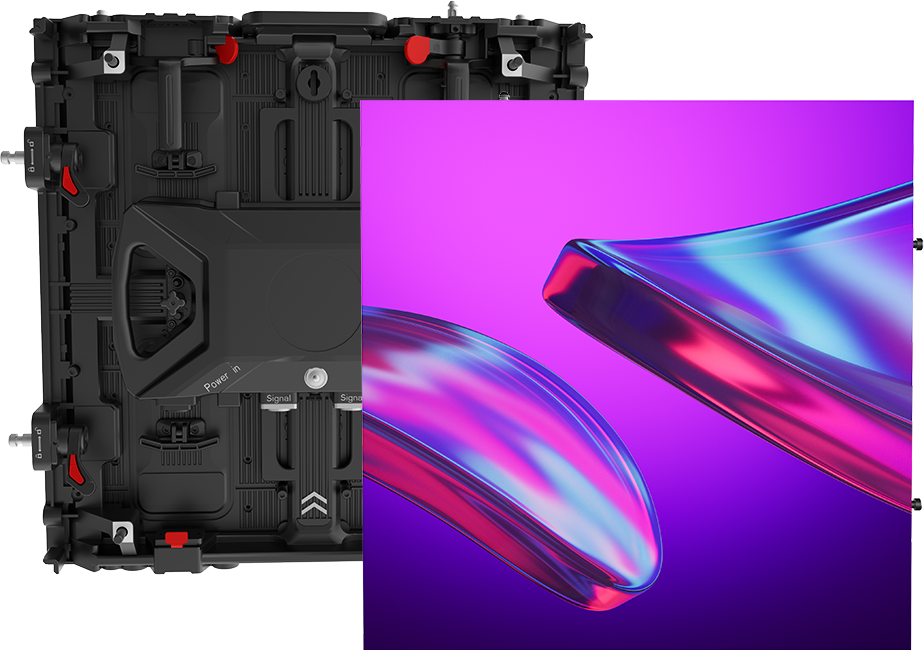

Magnetic Attachment

The magnetic attachment between the cabinet and modules

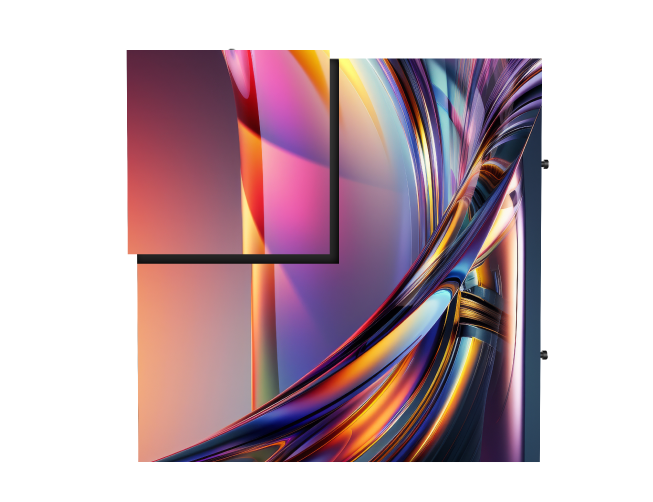

Front and rear maintenance

Support for front and rear maintenance, different maintenance methods can be selected according to different application scenarios.

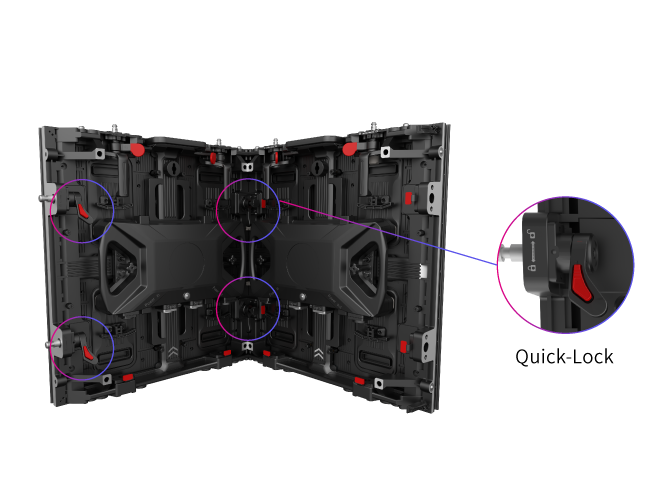

90° right angle splicing

The Sunlit Max Series supports 90° splicing, bringing creative display ideas to life.

High Brightness

3000nits

Full Flip-Chip COB Technology,Redefining Premium Outdoor Displays

Wide color gamut and high contrast ratio faithfully reproduce every detail.

3000 nits of high brightness deliver vivid, true-to-life visuals.

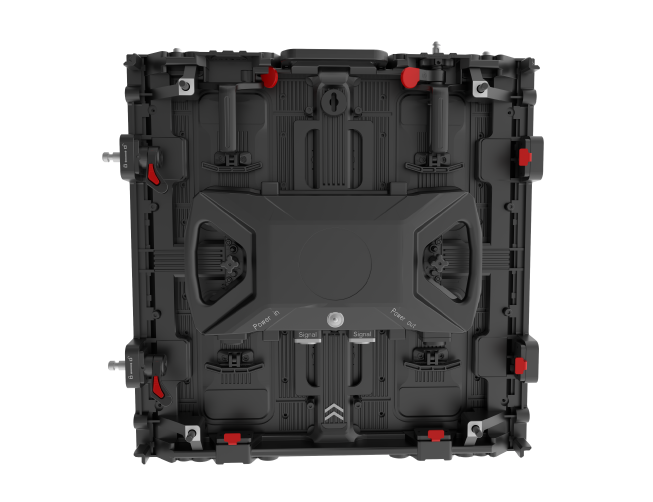

Die-Cast Cabinet, Ensuring Ultimate Flatness

500x500mm die-cast cabinet delivers superior flatness.

Front & Rear Maintenance, Easy and Efficient

The Sunlit Max Series supports both front and rear maintenance, meeting various project requirements.

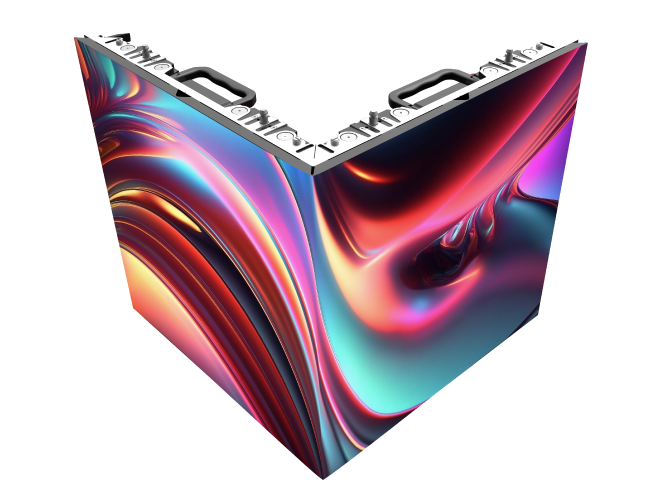

Right-Angle Splicing, Breaking Display Boundaries

The Sunlit Max Series supports 90° splicing, bringing creative display ideas to life.

Corner Protectors, Designed for Impact Resistance

Foldable corner guards protect modules from bumps and knocks.

Hard Connection Design, Built for Stability

The modules adopt a hard connection design for greater stability.

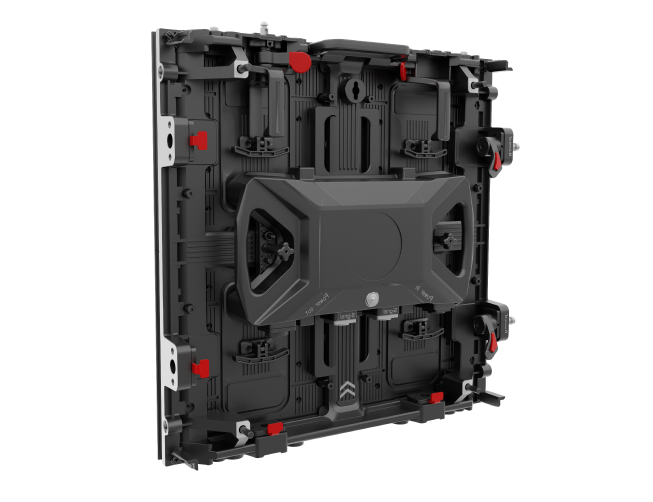

Magnetic Attachment & Quick-Lock Design, New Approach to Installation

The magnetic attachment between the cabinet and modules, combined with the quick-lock design between cabinets, makes installation and maintenance more convenient.

The rear panel is designed with captive screws for flexible, multi-scenario applications.

Multiple applications

Specifications

Sunlit Max Series

ROC55-1P5VF

ROC55-1P9VF

Model
Pixel Pitch(mm)
Resolution
Panel Technology
Unit Weight(WxHxD)(mm)
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Unit Weight(kg)

ROC55-1P5VF
1.5625
320*320
COB
500 x 500 x 89
3000
1,000,000:1
7500（Adjustable）
60
3840
AC：100~240V，50/60Hz
680
230
100,000
-10 ~ 50
10 ~ 90
9

ROC55-1P5VF
1.953
256*256
COB
500 x 500 x 89
3000
1,000,000:1
7500（Adjustable）
60
3840
AC：100~240V，50/60Hz
680
230
100,000
-10 ~ 50
10 ~ 90
9

Related Downloads

Sunlit Max Series Outdoor COB Rental Panel

1.8MB

2025-08-07
