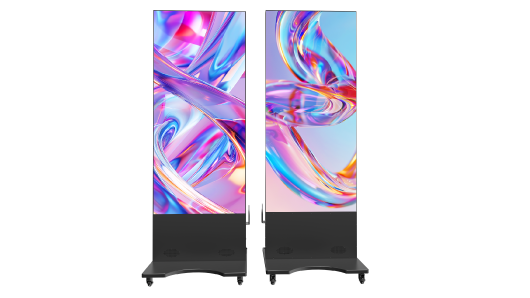

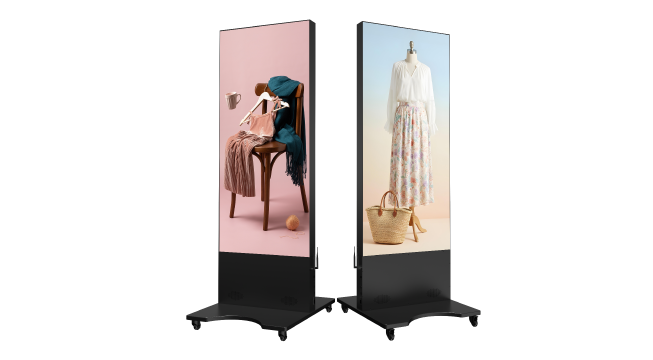

V-Sight(S) Indoor LED Advertising Kiosk

V-Sight(S) Series
Indoor LED Advertising Kiosk
SMD / COB

Slim design

Smart Control

Superior Display

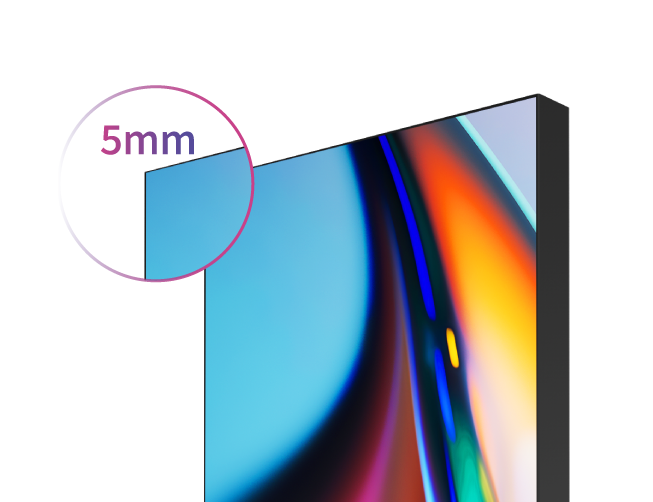

Lightweight, slim and streamlined design.

The design is streamlined to ensure a high-quality display with a lighter weight, slimmer cabinet and thinner bezels.

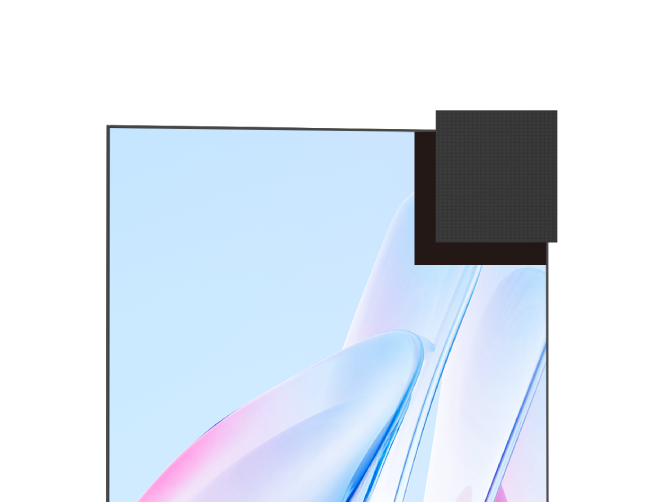

Powerful protection for a worry-free display.

The screen surface supports protection by the PC panel or module glueing process, which protects the screen surface from water, dust, bumps, and static electricity.

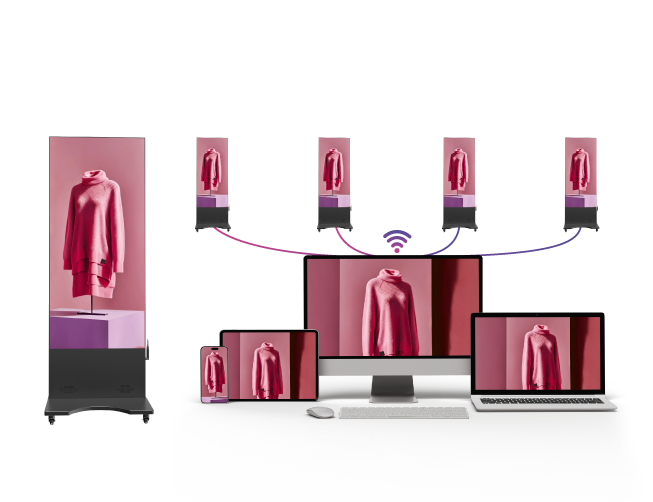

Cloud connection, wireless control.

Users can use a variety of terminal devices such as PCs, mobile phones and PADs to uniformly control multiple V-Sight(S) advertising kiosks through a wireless network for programme delivery, screen control and other operations.

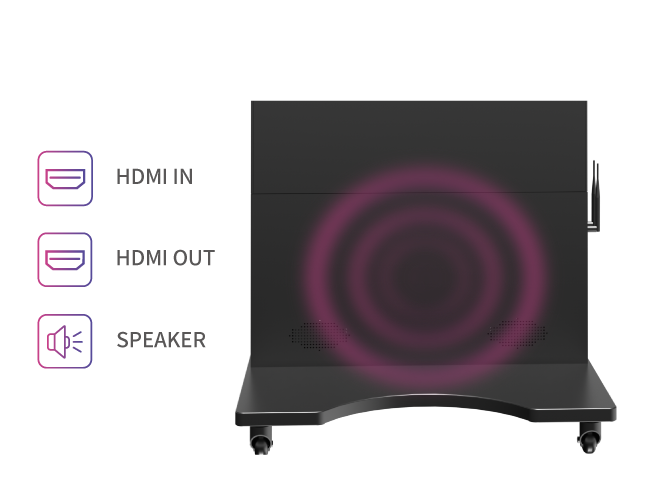

Blending into one, more than just display.

With built-in speakers, the V-Sight(S) advertising kiosk requires no external audio equipment and has multiple types of signal ports to meet different application scenarios.

Full Front Maintenance

A front maintenance die-cast aluminium cabinet allows the V-Sight(S) to have a high level of flatness while making installation and maintenance quick and easy.

Three Mounting Options

Specifications

V-Sight(S) Series

KU70COBVT-12SCP

KU70COBVT-15SCP

KU70COBVT-18SCP

KU70LEDVT-18SCP

KU70LEDVT-25SCP

Model
Panel Technology
Pixel Pitch(mm)
Resolution
Actual Screen Dimensions(W x Hmm)
Overal Dimensions(W x H x Dmm)
Weight(kg)
Brightness(nits)
Viewing Angle(H./V.)
Colour Temperature
Gray Scale(Bit)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W)
Power Consumption Avg(W)
Operating Temp(°C)
Humidity Range(%RH)
Display Mode

KU70COBVT-12SCP
COB
P1.25
480*1350
600 x 1687.5
610 x 1800 x 32(460)
35
600
170°/170°
2500K~10000K(adjustable)
14
3840
AC:100V~240V, 50/60Hz
380
130
-10 ~ +50
10~80
Synchronous/ Asynchronous

KU70COBVT-15SCP
COB
P1.5625
3840*1080
600 x 1687.5
610 x 1800 x 32(460)
35
600
170°/170°
2500K~10000K(adjustable)
14
3840
AC:100V~240V, 50/60Hz
380
130
-10 ~ +50
10~80
Synchronous/ Asynchronous

KU70COBVT-18SCP
COB
P1.875
320*900
600 x 1687.5
610 x 1800 x 32(460)
35
550
170°/170°
2500K~10000K(adjustable)
14
3840
AC:100V~240V, 50/60Hz
350
120
-10 ~ +50
10~80
Synchronous/ Asynchronous

KU70LEDVT-18SCP
SMD
P1.875
320*900
600 x 1687.5
610 x 1800 x 32(460)
35
800
160°/160°
2500K~10000K(adjustable)
14
3840
AC:100V~240V, 50/60Hz
510
170
-10 ~ +50
10~80
Synchronous/ Asynchronous

KU70LEDVT-25SCP
SMD
P2.5
240*675
600 x 1687.5
610 x 1800 x 32(460)
35
800
160°/160°
2500K~10000K(adjustable)
14
3840
AC:100V~240V, 50/60Hz
510
170
-10 ~ +50
10~80
Synchronous/ Asynchronous
